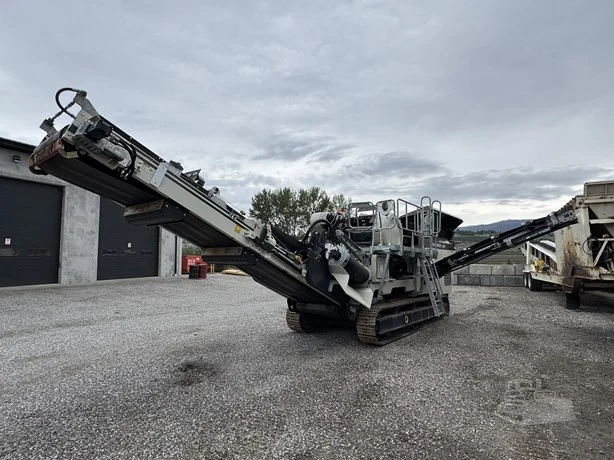

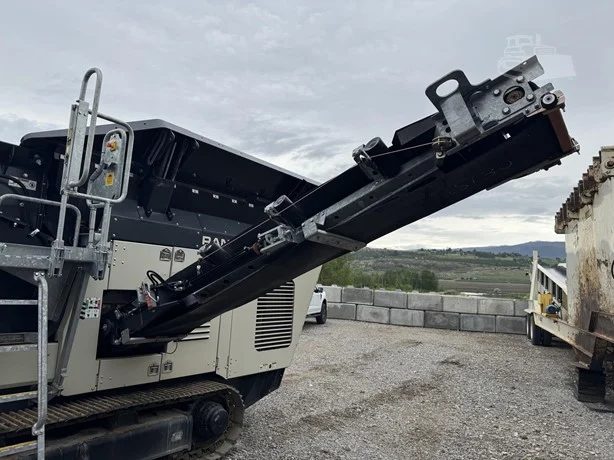

Power Unit- Volvo Penta D5 172hp (129kw), EU Stage IV or V, EPA Tier 3 or 4F- CAT C4.4 172hp (129kw) EU Stage IV or V, EPA Tier 3 or 4F- 52 gal (200L) fuel tank- 156 gal (600L) hydraulic oil reservoir- 34” x 20” (850 x 500mm) crusher opening- Reversible hydraulic drive through V-belts. -Hopper/Feeder- Hydraulically folds sides and rear hopper- Hopper size 6’ 6” x 13’ 5” (2,000 x 4,100mm)- 5 cubic yard hopper capacity. -Under Crusher Conveyor- 30’ x 36” (9,144 x 900mm) conveyor with hydraulic drive- Hydraulically folds for transport- Impact bed under crusher- Discharge height 9’ 10” (3,015mm)
